Headlights won't retract 89S4. I checked the fuses, they are ok...

----

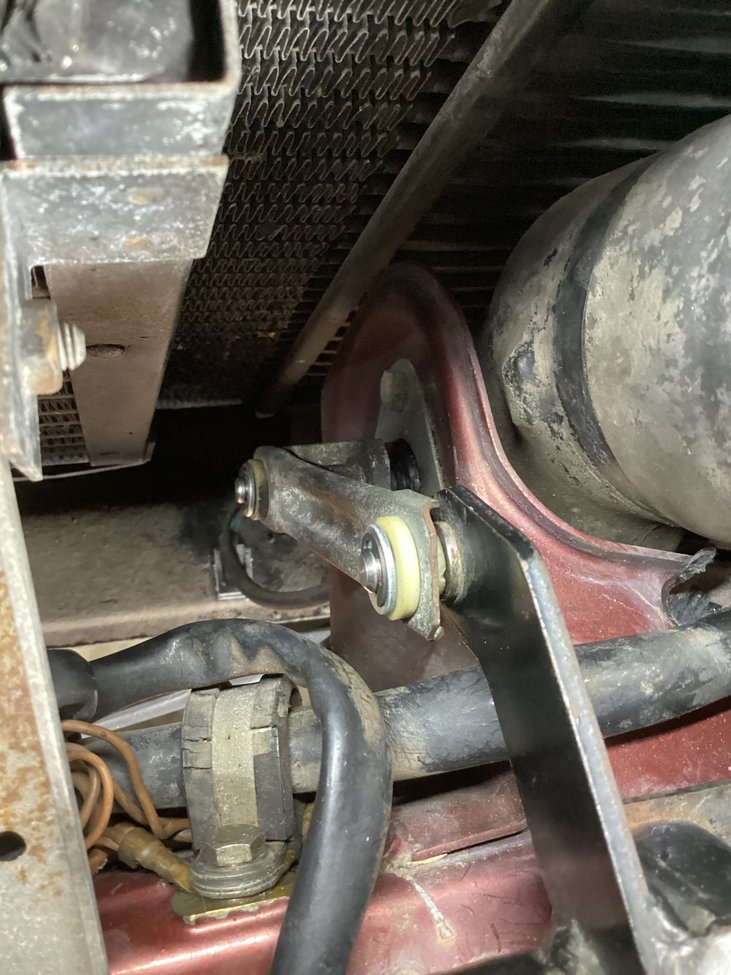

So, the motor activates and turns the lights up, but they don’t come back down? Have you watched the motor to see if it’s turning the arm for retraction?

Arm

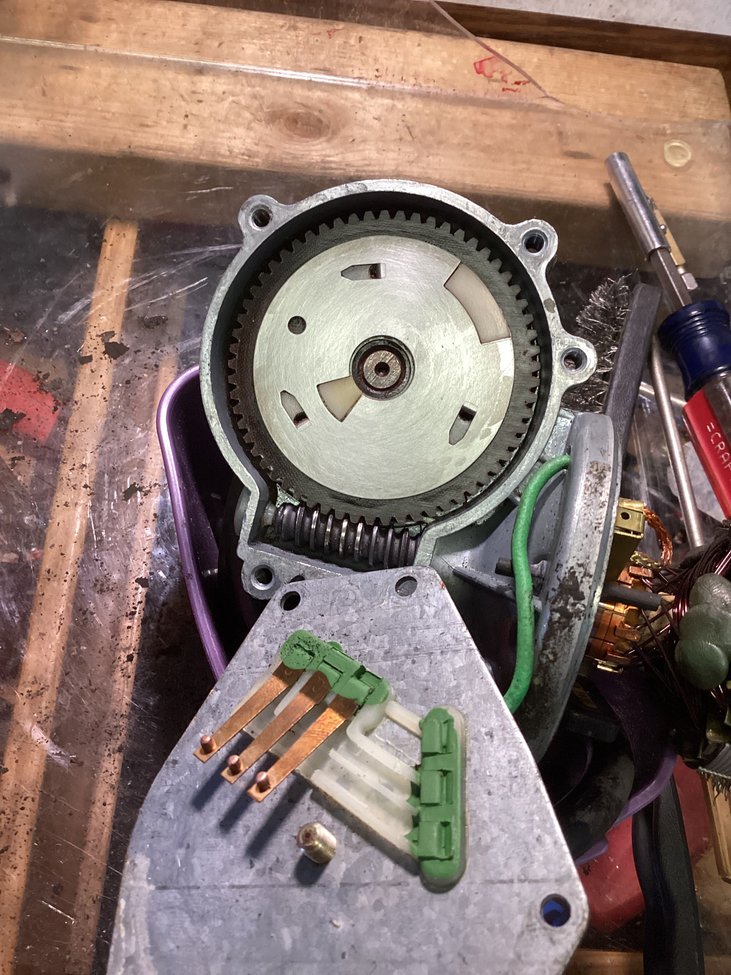

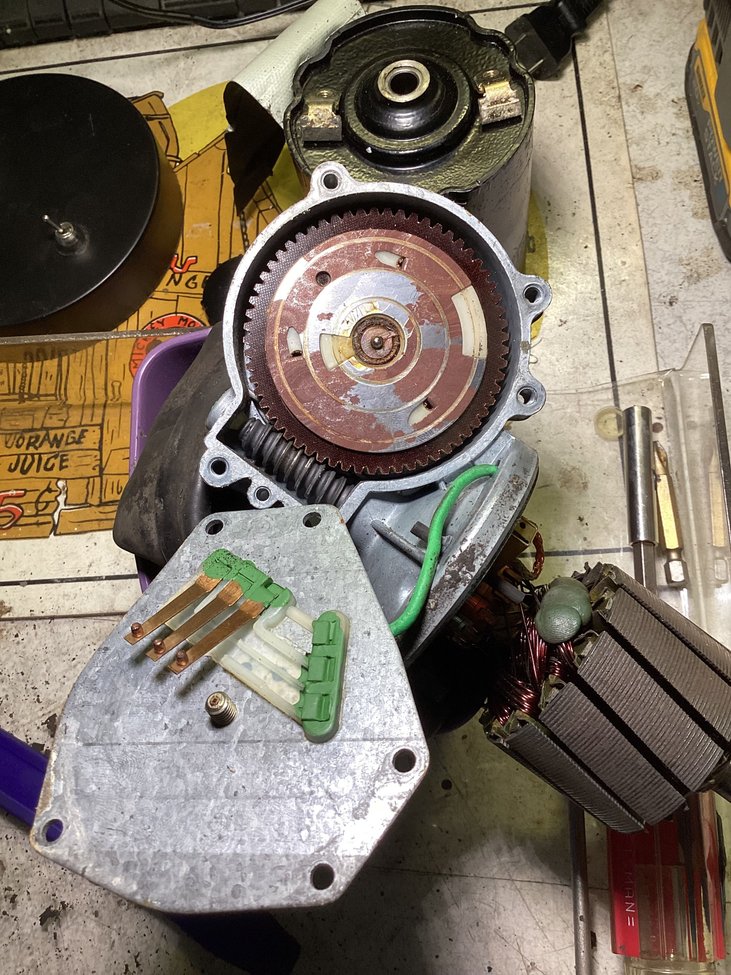

When I removed the headlight motor, the rust made my motor lose contact and it made the lights not stay up.


I cleaned it up and then it worked full range perfectly.

Mark

-----

Rotated the headlight motor to retract the lights. No the headlights go up but will not lower. Relay.

Pulled the relay - It's a .01 revision. It should be a .04. And the cover has been off in the past.

Pulled the same relay from my 90 parts car and it's a .01, too.

My understanding is the 89+ relays spin the motor 180 degrees and back. Earlier versions spin the motor a full 360 degrees.

And it would appear using the earlier revision is popular. :-)

I now have 2 .01s and one .02.

Kevin
